▼ CANtouch CAN-Bus 手持式檢測器   ▼ Technical Data

手持檢測儀器用以調試、分析、監測、故障排除和維修/保養 CAN-Bus - 整合的功能和簡易的操作界面,為 CAN-Bus 上的物理和邏輯分析的新標杆


The CANtouch is a mobile measuring device for CAN-based bus systems.

The further development of the CAN-Bus Tester 2 is battery-powered and equipped with a touch display. Its intuitive user interface allows extensive measurements to be taken in the shortest possible time. The results can be archived for documentation or later analysis and further processed on the PC.

The physical layer measurements have been extended to include the direct determination of potential differences between the participants (common mode/ground shift).

With the online trigger, you can monitor the bus for individual physical limits, determine problems over time and make errors visible in the oscillogram.

The protocol monitor is used for sending, receiving, decoding, and recording messages.



Bus Systems

The CANtouch supports these bus systems in physical layer measurements: CAN, CANopen, DeviceNet, and SAE J1939.

You can also use CANtouch for measurement in other bus systems based on the CAN standard. These include Isobus, NMEA 2000, and SafetyBus P and Energy bus, CANaerospace, and ARINC825. Niche bus systems also include MilCAN and CANopen Lift.


Physical Measurements

For every node within the bus can be determined additionally



Protocol Analysis

CANtouch Protocol Analysis


Sofware License Model

The big range of functions is not often needed in whole. To set the device to an attractive price worthy level, a license model was established. The not included functions can be tested in a 30 day trial time. At this time, there are no functional limitations. To get a function unlocked forever, a license has to be purchased.

So you are deciding on your own which functions are needed in your case and what is worthy of investing in.

Even the hardware doesn’t have to be purchased completely. The basic set comes without a service case and adapter set.


Device Philosophy

CANtouch bewegtes Display

The CANtouch is a battery-operated handheld diagnosis device for physical and logical CAN bus analysis. With its modern touch control, it allows intuitive and efficient handling without an additional computer.

As further development of the CAN-Bus Tester 2, it has not only its functionality; it has new additional measurements as well. An easier valuation procedure with traffic light colors and smileys supports your work with a quick valuation of the measures.

With the possibility for future updates, you are equipped for further enhancement. New functionality can be unlocked by purchasing additional licenses. In addition, we provide new software within the scope of product maintenance, which can be downloaded free of charge by every owner of a CANtouch. Many new functions are made available free of charge.

The integrated battery supplies power to the device without a problem for a whole intense measurement day. It is monitored by a special charge controller that calculates the remaining time and residual charge. If all that is not enough – the device is charged up to 80% in only one hour regardless of whether you are measuring at that time or not.

The rubberized aluminum continuous casting body is not only impressing high quality, but it is also extremely robust.


Rating System Smileys

Screenshot Rating

The rating system shows at a glance whether your values are good or bad.
With traffic light colors red, yellow, and green plus a display as smiley, you gather rapidly how your system is doing today.
By clicking on the smiley, it shows the basis of valuation.
You can set the threshold values via an XML file to make individual specifications for the evaluation. You have always loaded the appropriate rating file for your system after a one-time setup through the project management.


Bus Settings Settings

Screenshot Rating

After selecting the right bus system, you have more options for choice. The device is searching for the correct baud rate, but it is also possible to choose one by hand. Beyond that, you can change the bit timing, which is essential for systems that are not running on CiA standards.
Besides this, you should choose the right ground reference point, whether the external ground connection or CAN_V- which is connected to pin 6 of the 9‑pin sup D socket.
Your settings for the CAN bus are saved project-related.


Control Center Settings

Control Center

In the control center, you can quickly reach the most important settings.


Other Settings Settings


The settings menu includes the following items:

  • • Device information
       Firmware management, battery status, memory usage, licenses, manufacturer information
  • • Device settings
       Language, brightness, switch-off delay, time
  • • Project management
       Creating, deleting, and naming projects
       Project-related bus settings
       Project-related screenshots
       Project-related rating settings
  • • A possibility to reset the device to factory settings


Archive Measurements ArchiveButton

Screenshot Archive

You can store the measurements of single nodes and the results measured by the apps Bus Wiring and Online Trigger in an archive file in a folder of the device’s flash drive. So they can be opened and analyzed later on by the device itself or a computer. You need the CAN-Bus Tester 2 user software, which is freely downloadable on this website for importing to the computer.

Besides that, you can save screenshots for documentation of all other measurements. More about that in the next menu item.



Screenshot Screenshots

The CANtouch can save up to 100 screenshots per project.
Simultaneously pressing the buttons “Power” and “Home,” another screenshot is made and saved to the flash drive. You can also access this function via the control center. If you reach the maximum number of screenshots, the device will delete the oldest.
With this feature, you can report the device’s functions and all measurements. The png-format files can be opened or imported into many software and documents.



Screenshot Info

The CANtouch shows information to the chosen feature if you tap that button.



Technical Data

  • CANtouch



    • General parameters and overview of functions

    Bus systems

    CAN (ISO11898‑2), CANopen (CiA301), DeviceNet (EN 50325 – 2), SAE J1939

    Bit sampling

    64-fold, 10240 sampling points

    Bit timing

    Adjustable BTL cycles (tq), sample point and resynchronization jump width (SJW)

    Supported baud rates

    Depending on bus system: 10; 20; 50; 100; 125; 250; 500; 800; 1000 kbit/s
    Additionally user-defined: 5; 33.3; 62.5; 75; 83.3; 200 kbit/s
    Automatic detection via baud rate scan, bit timing adjustable

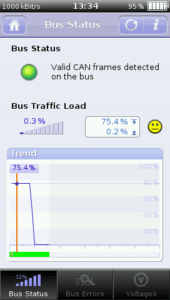

    Bus status

    Bus traffic detection (display: dominant, recessive, not defined, bus traffic)
    Display of the Bus traffic load (0 … 100 %)
    characteristic, minimum and maximum value saving

    Bus errors

    Display of detected frame errors
    Distinction between active and passive error frames (0 … >50,000), trend chart

    Bus voltages

    Display of the optional CAN supply voltage and shield voltage
    Characteristic, minimum and maximum value saving

    Common mode voltage

    Acquisition of the maximum voltage offset between the individual bus nodes

    CAN level (absolute /differential)

    Acquisition and evaluation of the differential and absolute CAN levels of all bus nodes during operation

    Node measurement

    Node related measurements
    Quality value (signal quality), Disturbance-free voltage range, Edge steepness (falling
    and rising) and Oscilloscope display with message frame analysis

    Online Trigger

    Error analysis with adjustable values, variable time slices and trigger function

    Protocol monitor

    Send and receive of CAN messages


    • Electrical parameters

    Power supply and battery*

    Integrated, rechargeable lithium-ion battery
    External power input: SELV d.c. voltage 14 V, internal fused with 2.5 A
    Operating with the supplied 35 W wide-range power supply unit only (SAW-14.0 – 2500)
    Times-to-empty: Standby: up to 500 hours
    Use: up to 36 hours
    Measuring: up to 6 hours
    Charge times: Quick charge to 80% in approx. 1 h
    Full charge in approx. 2 h

    Potential difference between the CAN bus and USB connections

    < 500 V AC

    Voltage between any two terminals of the CAN connection or external ground, resp.

    < ±30 V DC




    Accuracy (typ.)

    Quality value

    0.0 % … 100.0 %

    0.1 %


    Edge steepness

    0/64 … 64/64



    Disturbance-free voltage range

    -0.75 V … +3.25 V

    0.05 V

    1.90 % ±100 mV

    Measuring of the differential voltage

    -0.75 V … +3.25 V

    0.01 V

    0.50 % ±10 mV (calibrated)

    Measuring of the absolute voltage

    -5.00 V … +10.00 V

    0.05 V

    0.50 % ±50 mV (calibrated)

    Measuring of the shield voltage

    -10.0 V … +1.0 V

    0.1 V

    0.25 % ±100 mV (calibrated)

    Measuring of the CAN supply voltage

    0.0 V … 32.0 V

    0.1 V

    0.25 % ±100 mV (calibrated)

    Measuring of the loop resistances

    0 Ω … 100 Ω
    100 Ω … 1000 Ω

    0.1 Ω
    1.0 Ω

    0.85 % ±0.2 Ω
    0.85 % ±2.0 Ω

    Measuring of the cable length

    2 m … 1000 m

    1 m

    5 % ±2 m
    (signal propagation delay: 4.5 ns/m)

    • Mechanical parameters

    Power supply unit connection

    Extra-low voltage socket

    CAN connection

    9‑pin D‑Sub connector

    PC connection

    Self-powered device to USB Specification 2.0, full speed, in addition, electrically isolated
    Connection of a drive for exchange of measuring data (USB mass storage device)


    Aluminum housing, cover glass

    Ambient conditions

    Operation temperature: 5 °C … 40 °C
    Storage temperature: ‑20 °C … 60 °C
    Atmospheric humidity: 20 % … 80 %, non-condensing

    Degree of protection of the housing

    IP20 to EN 60529


    186 mm x 102 mm x 37 mm


    Approx. 860 g
